Telenco DS5

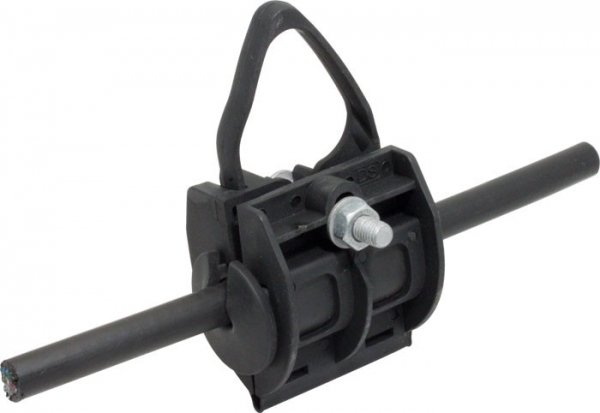

Suspension clamp DS

DS clamps are used for enabling mobile suspension of round or flat drop cables
Ø 5 to 17mm on intermediate poles used for distribution networks with spans up
to 70m. For angles superior to 20°, it is recommended to install a double anchor.

Suspension clamps included within the DS family are designed with a hinged
plastic shell equipped with an elastomer protective insert and an opening bail.
The clamp's body secures by tightening an integrated bolt.

Customer benefits:

• Lightweight, cost-efficient and compact design
• A comprehensive range compatible with all cables with Ø from 5 to 17mm
• Installation within a couple of seconds, requiring no tools
• Mounting on all pole line hardware with closed eye and min. Ø 10mm
• Mobile suspension clamps offer an increased cable protection against aeolian vibrations
