Features:

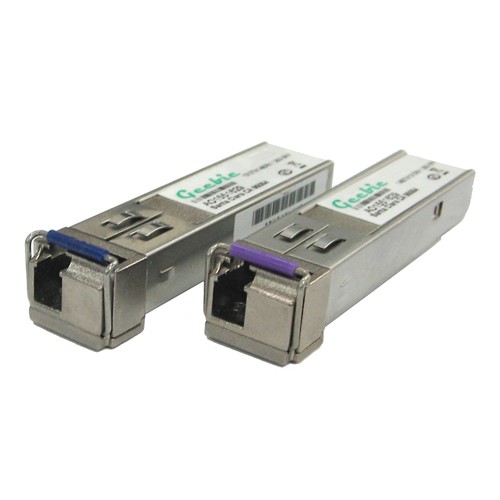

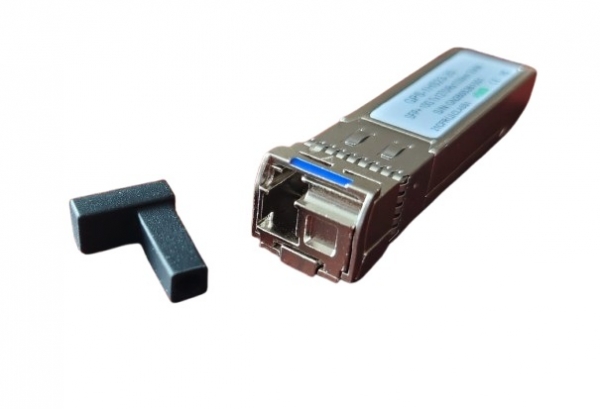

♦ Simplex LC Connector Bi-Directional SFP+ Optical Transceiver
♦ Single 3.3V Supply
♦ Up to 20km on 9/125um SMF
♦ Two types：
A:1270nm DFB Laser transmitter,1330nm receiver
B:1330nm DFB Laser transmitter,1270nm receiver
♦ Compliant with IEEE 802.3ae 10GBASE-LR and 10GBASE-LW
♦ SFP+ MSA SFF-8431 Compliant
♦ Digital Diagnostic SFF-8472 Compliant
♦ RoHS compliant and Lead Free
♦ Operating case temperature: Standard 0 ~ 70 °C
Application:
♦ 10GBASE-LR at 10.3125Gbps
♦ 10GBASE-LW at 9.953Gbps
♦ Other Optical Links
